POWERSENSE

PowerSense

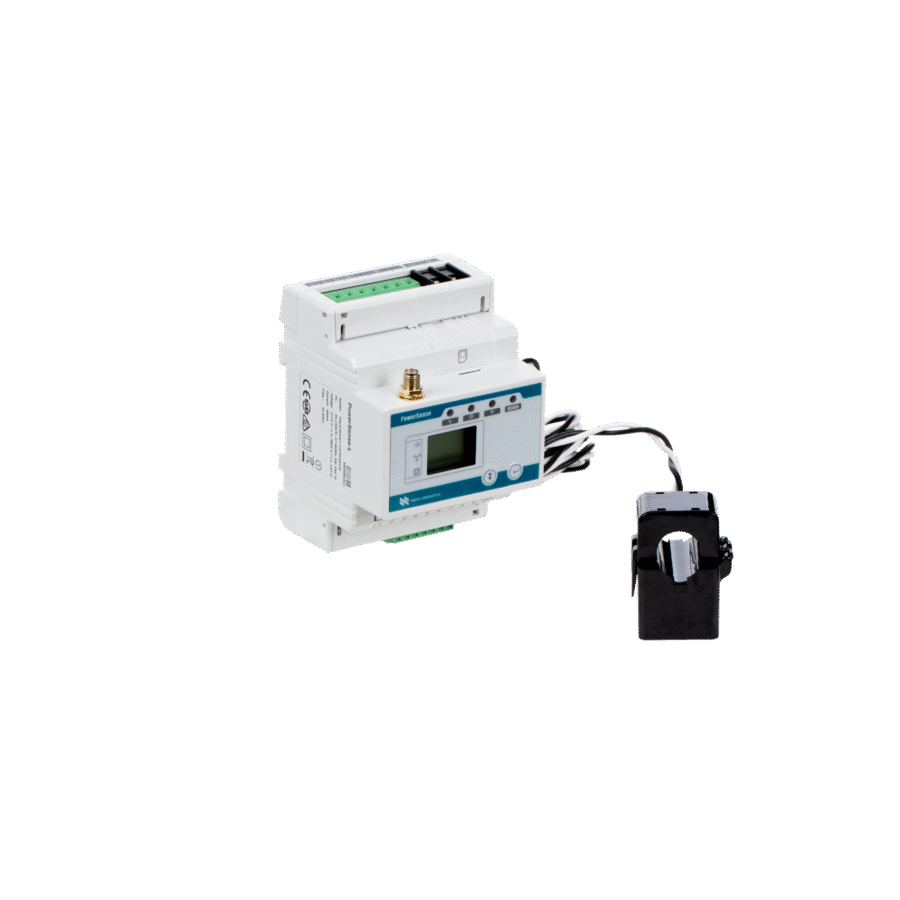

The “PowerSense” is advanced technology DIN rail and 3 – phase LoRaWAN submeter applied for the full measurement electric energy consumption, power factor, tariffs and other electric properties in order to ensure energy monitoring, management and sub-metering.

PowerSense is easily installed and equipped with the split core and non-invasive current transformers, used indoors.
The novel sensor is three or one phase enables reliable capability of the measurement of the electrical parameters: bi – directional power, electricity, currents, voltages, power factor, harmonics distortion.

PoweSense enables measuring the currents up to 1600 A and transmitting to energy management / building management system, SCADA.
The protection level is up to IP30 and can easily be integrated in the industrial environments.

The data transmitted from the sensor is based on Class A LoRaWAN® wireless network. The PowerSense is easily configured and connected to the LoRaWAN® wireless network.

The PowerSense is applied for commercial, public, warehouse, logistic buildings, industrial facilities. Such sensor enables to boost the electric power savings and to predict the electrical energy consumption, equipment maintenance.
The PowerSense is battery and AC voltage feeded. Battery enables efficient processing of the data. AC voltage is mandatory for the measurements.

Electricity
Temperature
Humidity
CO2
VOC level
Light
Motion
CONTACT NOW

KEY BENEFITS

Monitoring and receiving timely data which enables significant electrical power savings and impacting of the reduction of the carbon emissions

Accurate measurement of the electrical parameters, electrical power consumption

Receiving advanced information about anomalies of the electric power consumption and generation.

Receiving key information for the analytics of effectiveness of the electrical loads and impacting significant savings of the energy

Enabling customer’s BMS systems to make rapid changes in building / office / warehouse / industrial facility electrical energy consumption in order to reach the maximum effectiveness of the performance of the systems

Enabling customer’s buildings generate lowest possible carbon footprint and making those buildings much more environmental friendly

ADDITIONAL INFORMATION



  • The measuring currents up to 1600 A, support other electrical multifunctional measurements.
  • New generation visual design of the product enables easy integration into unity of the indoor space design.
  • Powered by 95- 250 V AC network.
  • Digital inputs/outputs for control and measurement.
  • Data transmission up to 10 km range.
  • Easy to use and deploy.
  • Communication technology: LoRaWAN® (optional Modbus).

DOCUMENTS TO DOWNLOAD

PowerSense manual

PowerSense datasheet
