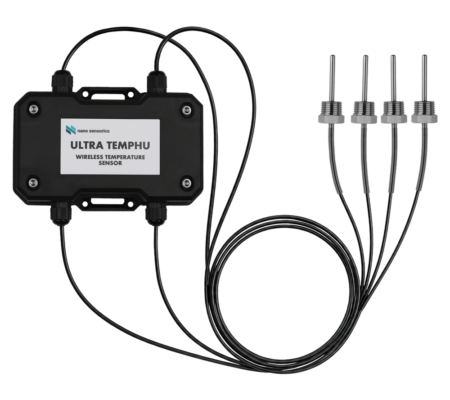

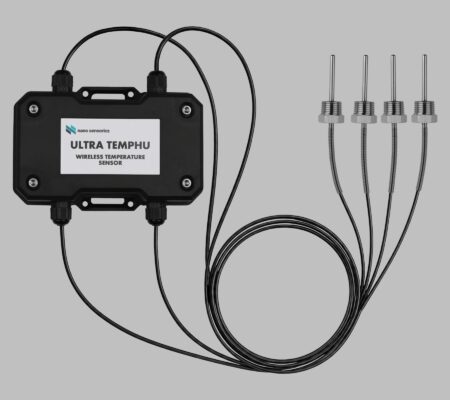

ULTRA TempHu
ULTRA TempHu is a heavy-duty industrial LoRaWAN® temperature sensor designed for direct multi-point temperature measurement in heating, cooling and industrial fluid systems.
The sensor is equipped with four independent threaded stainless-steel temperature probes, allowing simultaneous temperature measurement at four separate points from a single wireless device.
The probes are designed for direct threaded installation into pipes, manifolds, collector cabinets, heat exchangers, tanks and other process connection points, providing direct contact with the measured medium and reliable temperature data for industrial and energy applications.
ULTRA TempHu is completely wireless and powered by 2 × D-cell lithium batteries. Measurement data is transmitted through a Class A LoRaWAN® network, while measurement intervals and device configuration can be managed remotely via downlink.
The integrated intelligent computational algorithm supports continuous auto self-calibration or manual calibration through LoRaWAN® downlink messaging, helping maintain reliable measurements during long-term operation.
With a measurement range from -40°C to +180°C, ULTRA TempHu is designed for demanding industrial installations, including heat pump systems, heating and cooling infrastructure and other applications requiring direct temperature measurement inside piping systems.
Application Areas
Heat Pump Systems
Multi-point temperature monitoring in heat pump installations, including supply and return lines and different hydraulic circuits.
Heat Pump Collector Cabinets
Direct temperature measurement at multiple collector or manifold connections using threaded temperature probes.
Heating and Cooling Manifolds
Monitoring individual circuits and temperature differences across heating or cooling distribution systems.
Pipelines and Hydraulic Circuits
Direct temperature measurement inside pipes where reliable contact with the measured medium is required.
Heat Exchangers
Monitoring inlet, outlet and other critical temperature points for system performance and efficiency evaluation.
Boilers and Heating Systems
Temperature monitoring across different sections of industrial and commercial heating installations.
Industrial Tanks and Process Systems
Direct temperature measurement in tanks, pipelines and process equipment through threaded probe connections.
Manual directly notes heat pumps, HVAC, boilers, chillers, heating/cooling systems, heat exchangers, pipelines ir industrial tanks.
Main Features of the PowerTempHu
- 4 × independent threaded temperature probes.
- Direct immersion temperature measurement.
- Threaded installation directly into pipes, manifolds and process connections.
- Stainless-steel SS304 probe construction, other options are available upon request.
- Standard NPT 1/2 connection, ther options are available upon request.
- Thread type can be selected according to regional installation standards
- Custom probe configurations available.
- Temperature measurement range: -40°C to +180°C.
- Accuracy: up to ±0.4°C from -10°C to +180°C.
- LoRaWAN® Class A communication.
- Configuration over the air.
- Auto self or manual calibration through downlink messaging.
- IP67 / IP68 enclosure.
- Powered by 2 × D-cell lithium batteries.
- Expected battery life up to approximately 10-13 years, depending on configuration and environment.
